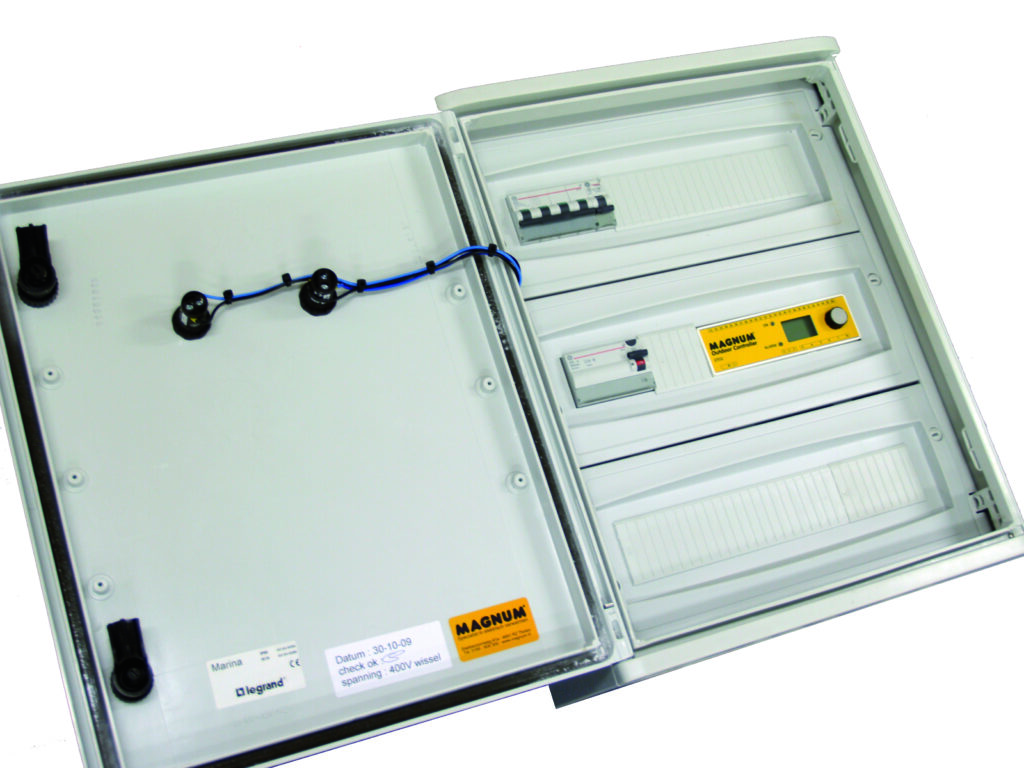

Complete watertight control cabinets manufactured and fitted according to the number of cables/mats and power. The system can be implemented in both 230V and 400V.
Connection box

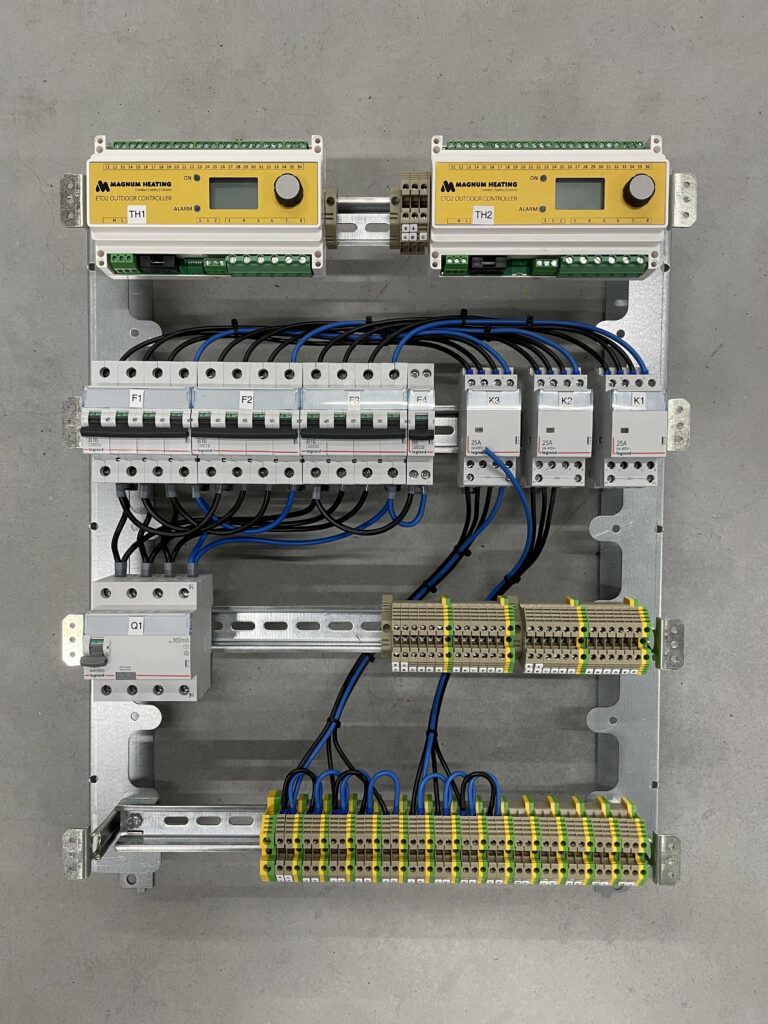

The control cabinets can be assembled custom-made for each project. The standard version is equipped (according to NEN1010) with the necessary waterproof cable entries, magnetic circuits (relays), circuit breakers, earth leakage switches, terminal strips for easy connection of power and heating cables and the special outdoor road sensor units. For this, the diagram shown in the switch box must be followed.
| MAGNUM Outdoor control cabinet, units/1 incl. ETO2-4550 DIN-rail thermostat and 2x ETOG-56 sensor units | ||
| Art.nr. | kW | Cabinet dimensions |
| 900004 | 3,6 kW | 430 x 310 x 160 mm |
| 900010 | 10 kW | 500 x 400 x 200 mm |
| 900020 | 20 kW | 500 x 400 x 200 mm |
Specifications
| ETO2-4550 DIN-rail | Thermostat 0°C / +5°C 230V |
| 2x ETOG-56 Sensorunits | Humidity & Temperature |
| Potential-free contacts | 3 x 16 Amps |
| Required solenoid circuits (relays) | 230V/400V |
| Required installation circuit breakers | 16 Amps |
| Connection terminals | for mounting power cables |
| Indicator lights | |
| Warranty | 2 year |
